Airbench

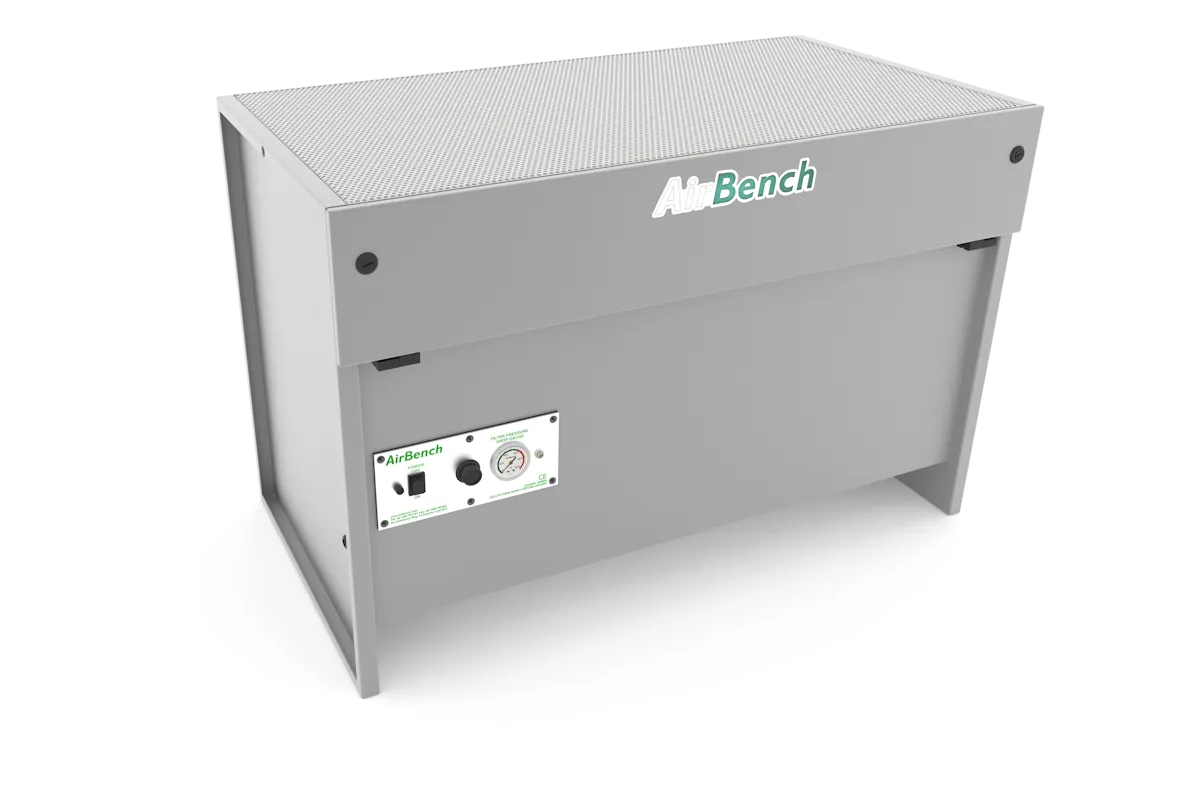

AirBench FN

Heavy Duty Downdraught Bench - Front Access

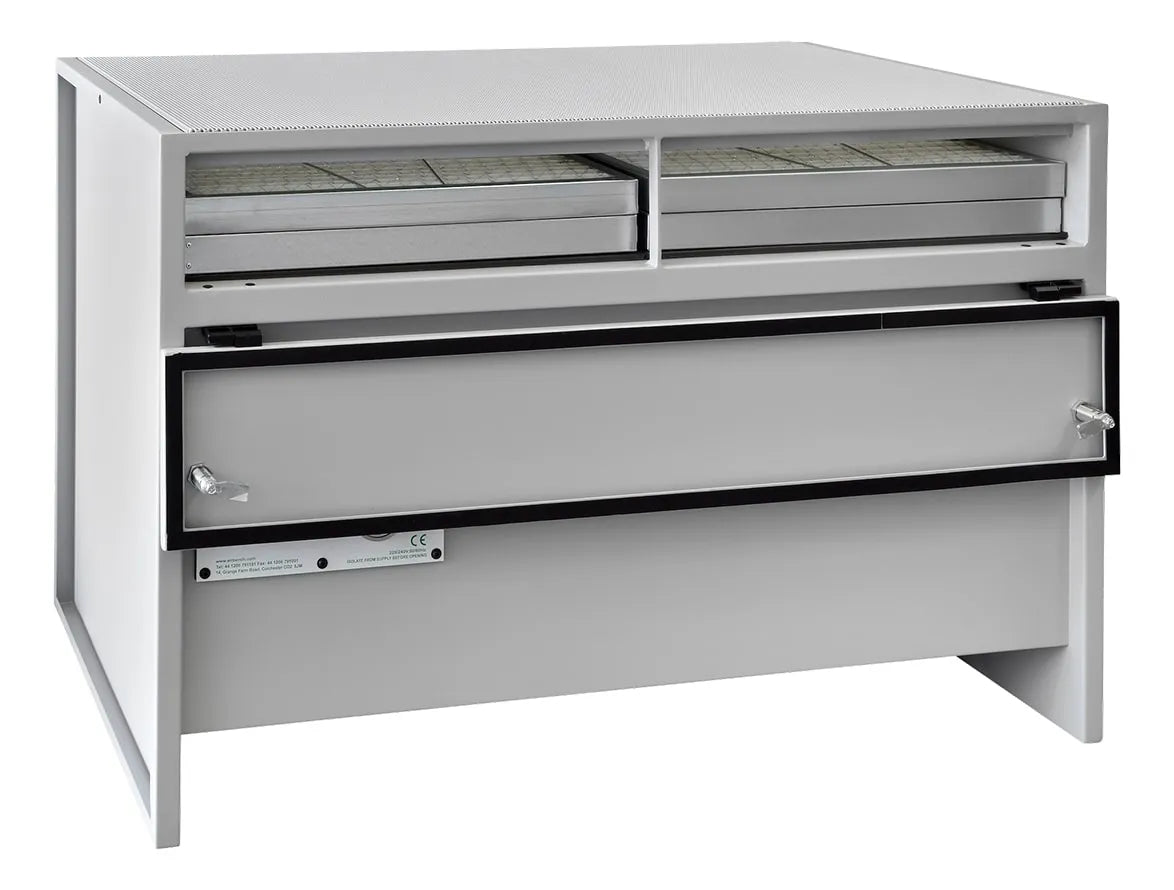

The heavy duty AirBench FN range comprises 5 downdraught benches in which filters are accessed via a hinged front panel for operator convenience; suitable for most applications but designed to cope with heavy industrial use. FN models can be supplied with a wide range of alternative filter configurations to suit different fume and dust extraction applications.

Heavy Duty 2mm steel
Fully welded and powder coated
3mm steel surface, perforated and powder coated
50kg surface loading as standard; up to 500kg surface loading on request
Spring clamped filters

Available Sizes

Model	Width	Depth	Height	Ventilated Area
FN066784	670	675	840	600x600
FN126784	1270	675	840	1200X600
FN186784	1870	675	840	1800X600
FN129784	1270	975	840	1200X900
FN189784	1870	975	840	1800X900

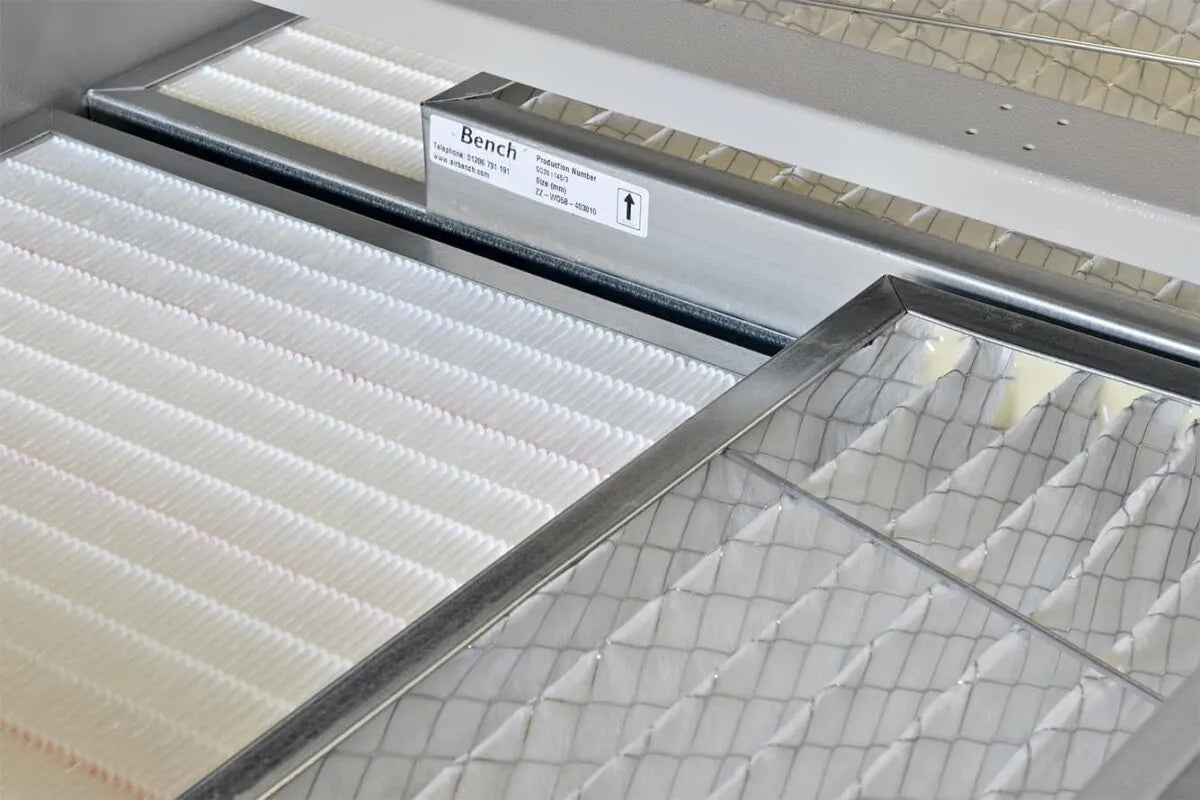

Available Filters

Filter Category	Applications
A - Non Sparking Dusts	Aluminium - Plastics - Atmospheric dusts - Flour or similar - GRP - Airline cleaning of electronics
F – Fine Dusts	Carbon fibre finishing/sanding - Powder sampling - Other composites - Softwood dusts - Tool cleaning without RCS - Suitable for most general dust applications
B - Very Fine Dusts	Fingerprinting - Rapid prototyping - Model making - Conservation and restoration - Printer / copier toner cartridge recycling - Powder sampling - Some chemical dusts
L - HEPA Filtered	Pharmaceuticals - Hardwoods and MDF - Laboratory - Optical - Clean packing areas - Materials containing RCS - Hazardous dusts
C - Dust and Light Sparks	Fettling - Sanding - Deburring - Dressing of welds
E - Low Volume Fume	Solvents - Conformal coatings - Adhesives - Airbrushing - Cleaning fluids - Not for MEK
S - Smoke and Fume	Soldering - Brazing - Conservation
