1000 Series: MSC 2600 and 4000 Polyester Sealer
1000 Series: MSC 2600 and 4000 Polyester Sealer
Improve document protection with our MS 2600 and MS 4000 Polyester Sealers, trusted by archivists, bookbinders, conservators, and photographers. These sealers provide superior encapsulation for valuable documents, maps, plans, photographs, and other sensitive materials inside durable, inert polyester sheets. The MS 2600 and MS 4000 ensure a strong, clean, and neat edge weld that remains intact without separating or splitting over time. Keep your important items safe and secure with our top-quality polyester sealers.
APPLICATION
The MS 2600 and MS 4000 Polyester Sealers provide a strong, heat-welded seal in less than ten seconds. Easily make customized archival envelopes, document holders, shelf liners, or other storage enclosures.
The MS series of Polyester Sealers can make seals of multiple layers and of multiple thicknesses of materials for the construction of flaps, tabs, or other binding materials to create custom enclosures to meet a multitude of requirements. In addition, the MS series Polyester Sealers are able to seal combinations of thermoplastic materials together. For example, Reemay spun bound polyester can be attached to polyester sheets, or Tyvek can be sealed to polyester to create Tyvek envelopes with a clear front.
FEATURES

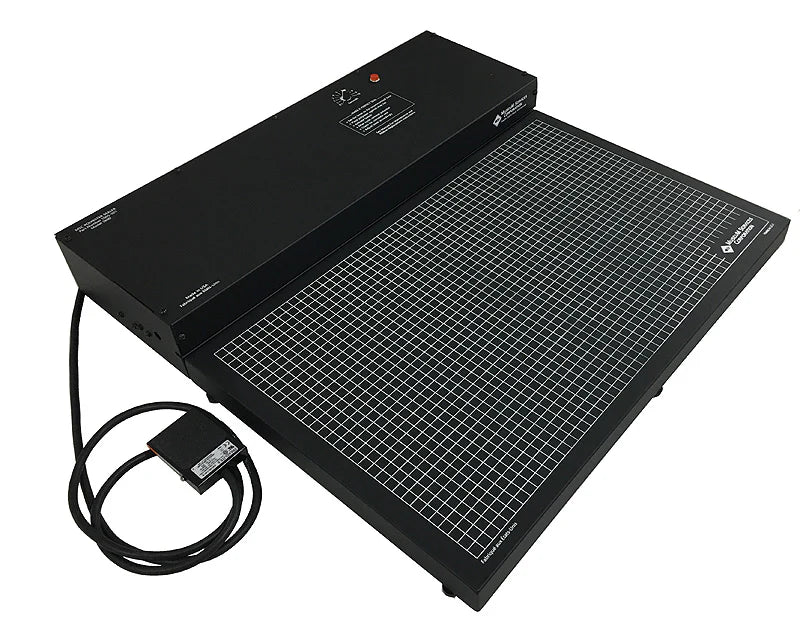

The MSC Polyester Sealer comes in two sizes, the MS2600 and the MS4000. The MS2600 has a large open throat that is 66 cm (26 inches) wide. The MS4000 model is 102 cm (40 inches) wide. The open throat allows either machine to perform multiple seals in a row for encapsulation of oversized items.
The MSC Polyester Sealer has two activation options. The first option uses an infrared activator switch. Swipe a finger on the switch to activate the heating cycle. The second option is a hands-free foot pedal activator switch. Depress the pedal and the heating cycle is activated.
The MSC Polyester Sealer seals up to 10 mil thicknesses total of polyester material at a time, and 20 mil thicknesses by doing more than one sealing cycle on thicker materials. Heat is applied only to the immediate edge being welded, so heat from the welding process does not affect objects 1/4 inch (.63 cm) from the edge.

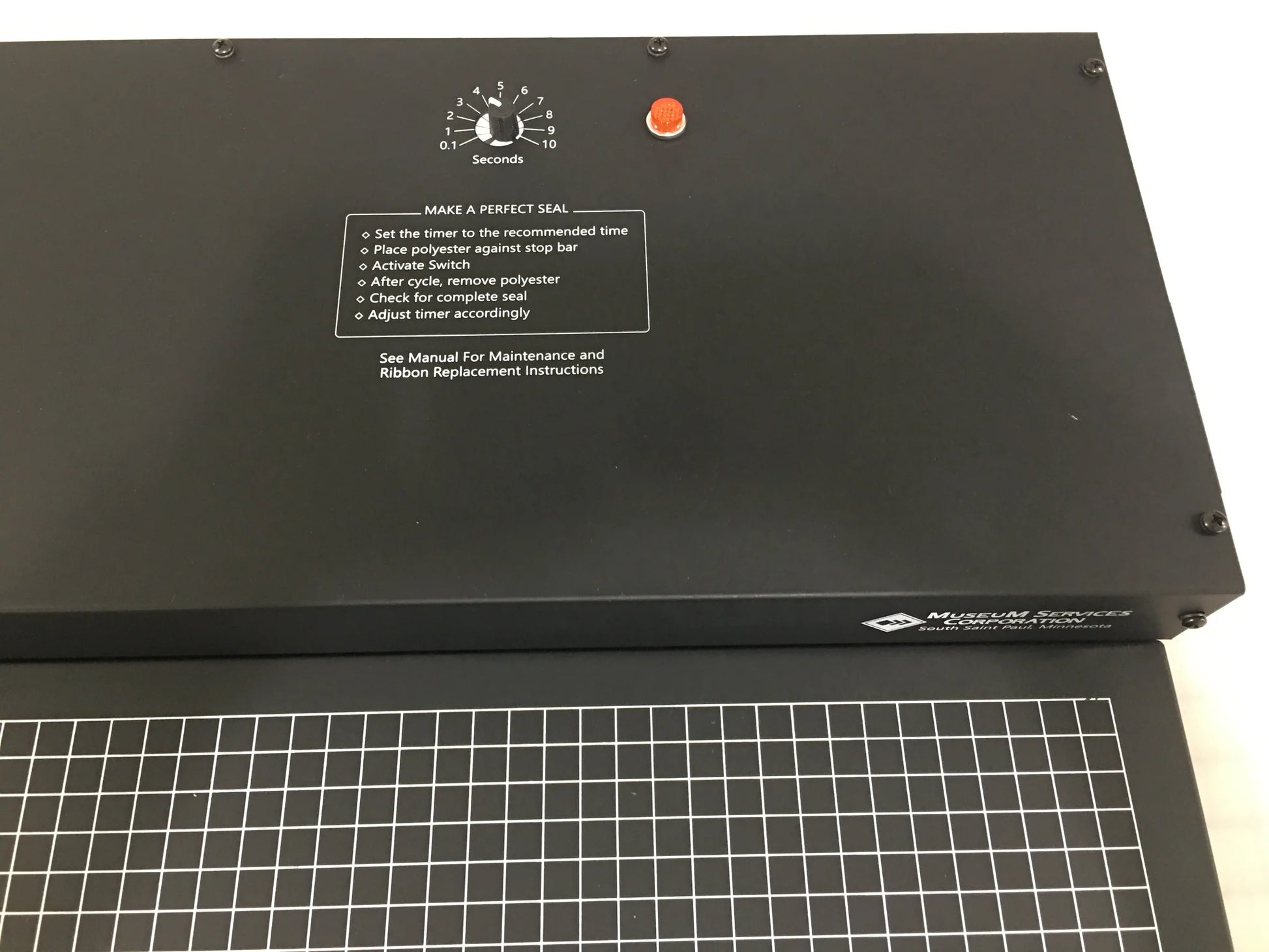

Replacement of the heating element requires only a screwdriver, usually after 5,000 seals or more (depending on material and frequency of sealing). Each unit comes with a connectable grid base to guide the user when aligning the polyester films for sealing. An adjustable timer allows flexibility for sealing thicker or thinner sheets. Compact size allows for convenient storage. Designed for low maintenance operations, all electrical and mechanical parts are easily accessible.
A spare heating element is included with each machine. Additional replacement heating elements are sold separately.
Warranty
One-year warranty under normal use.
ELECTRICAL
- 120 VAC, 50/60 Hz 1Ø 600 watts
- 220-240 VAC, 50/60 Hz 1Ø 600 watts
No. | Description | Size |
1005-001 | MS2600 Polyester Sealer | 26 inches (66 cm) |
1005-002 | MS2600 Polyester Sealer, 220 VAC | 26 inches (66 cm) |
1006-001 | MS2600 Polyester Sealer Ribbon | 26 inches (66 cm) |
1007-001 | MS4000 Polyester Sealer | 40 inches (102 cm) |
1007-002 | MS4000 Polyester Sealer, 220 VAC | 40 inches (102 cm) |
1008-001 | MS4000 Polyester Sealer Ribbon | 40 inches (102 cm) |
