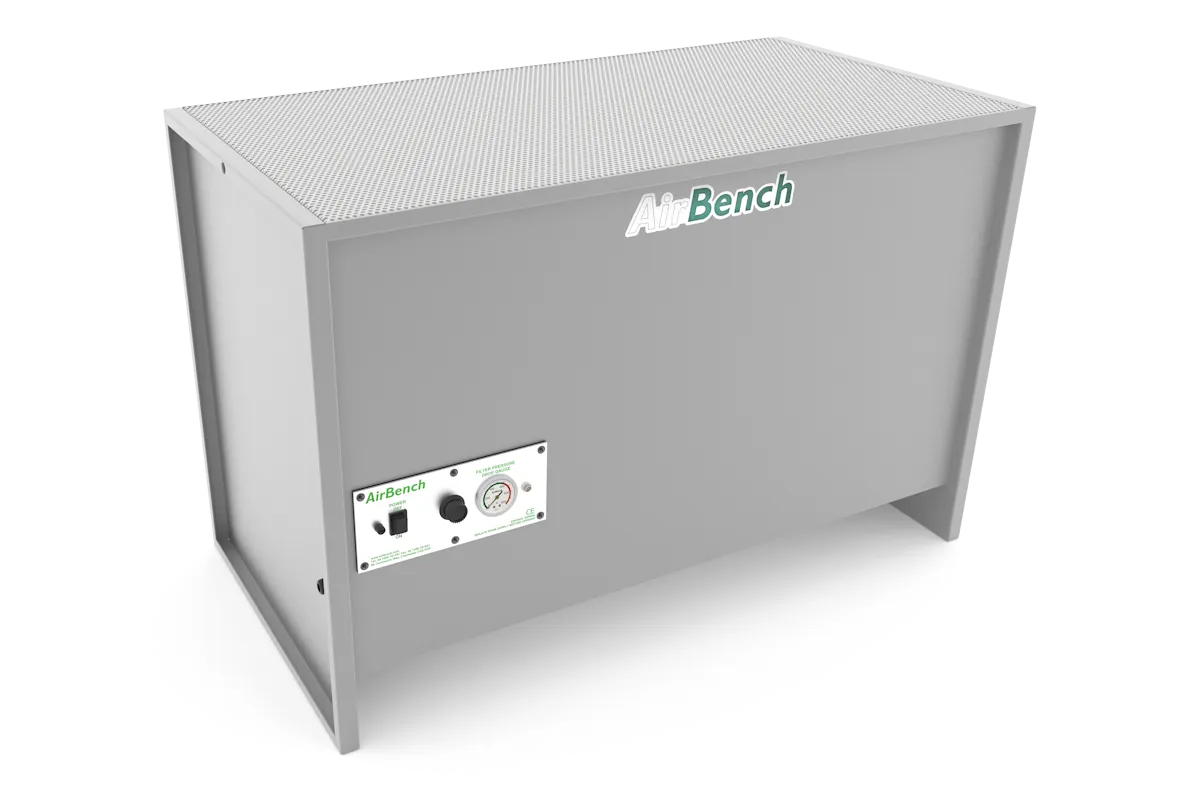

AirBench FP

AirBench FP

Heavy Duty Downdraught Bench - Top Access

The heavy duty AirBench FP range comprises 5 downdraught benches in which filters are accessed through the surface; suitable for most applications but designed to cope with heavy industrial use.

FP models can be supplied with a wide range of alternative filter configurations to suit different fume and dust extraction applications and are ideally suited to customisation or modification during manufacture.

  • Heavy Duty 2mm steel
  • Fully welded and powder coated
  • 3mm steel surface, perforated and powder coated
  • 50kg surface loading; up to 500kg surface loading on request
  • Actively clamped filters

Specifications

Available Sizes

Model Width Depth Height Ventilated Area
FP066784 670 660 840 600x600
FP126784 1270 660 840 1200X600
FP186784 1870 660 840 1800X600
FP129784 1270 960 840 1200X900
FP189784 1870 960 840 1800X900


Available Filters

Filter Category Applications
A - Non Sparking Dusts Aluminium - Plastics - Atmospheric dusts - Flour or similar - GRP - Airline cleaning of electronics
F - Fine Dusts Carbon fibre finishing/sanding - Powder sampling - Other composites - Softwood dusts - Tool cleaning without RCS - Suitable for most general dust applications
B - Very Fine Dusts Fingerprinting - Rapid prototyping - Model making - Conservation and restoration - Printer / copier toner cartridge recycling - Powder sampling - Some chemical dusts
L - HEPA Filtered Pharmaceuticals - Hardwoods and MDF - Laboratory - Optical - Clean packing areas - Materials containing RCS - Hazardous dusts
C - Dust and Light Sparks Fettling - Sanding - Deburring - Dressing of welds
T - Light Sparks with HEPA - Fettling - Sanding - Deburring - Dressing of welds - Stainless or other potential carcinogens
E - Low Volume Fume Solvents - Conformal coatings - Adhesives - Airbrushing - Cleaning fluids - Not for MEK
J - High Volume Fume Solvents - Conformal coatings - Adhesives - Airbrushing - Cleaning fluids - Not for MEK.
R - Special Duty Fume Formaldehyde - Nitrogen Dioxide - Sulphur Dioxide - Hydrogen Sulphide - MEK - See ‘E’ and ‘J’ configurations for other fume applications.
S - Smoke and Fume Soldering - Brazing - Conservation
