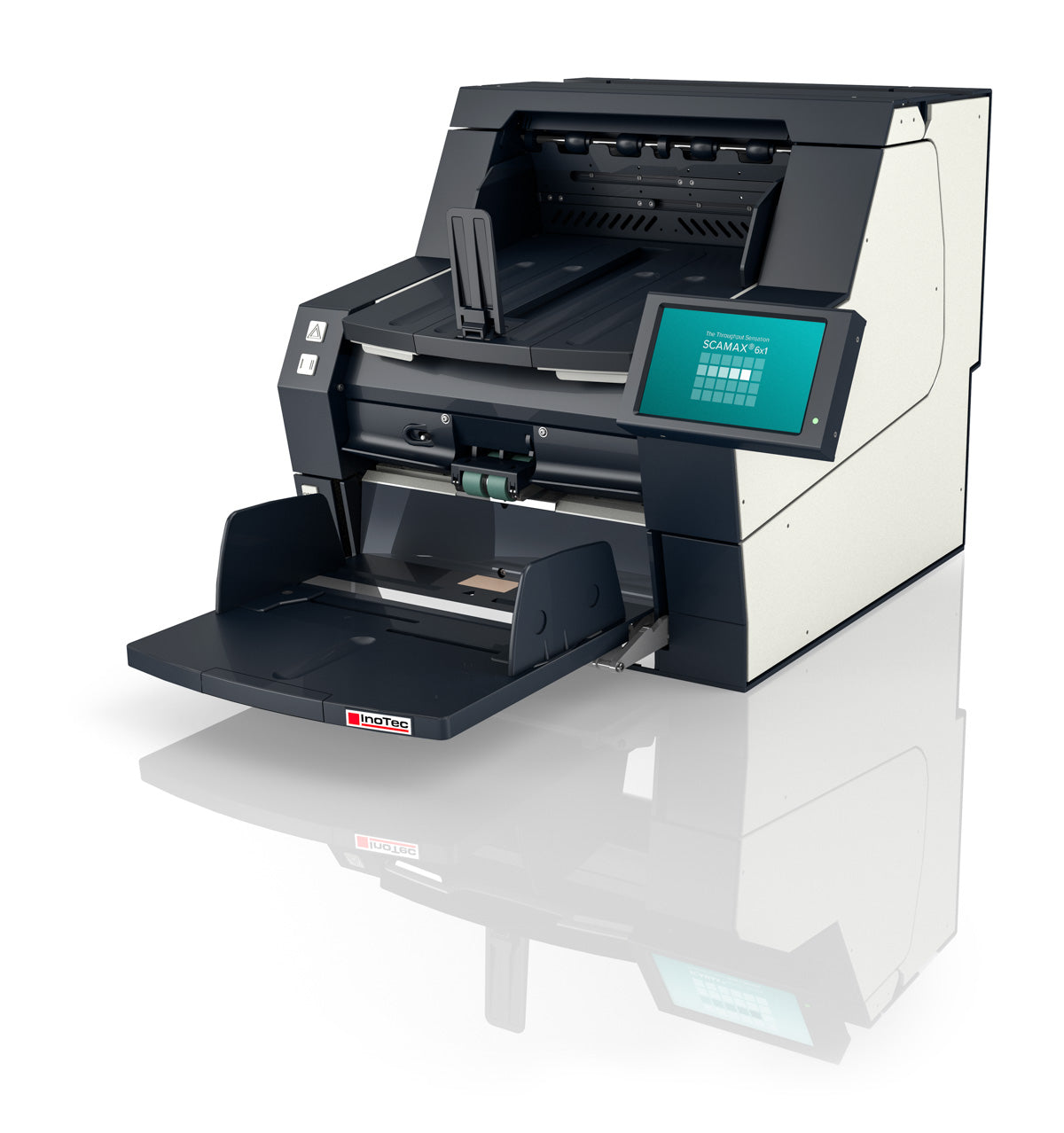

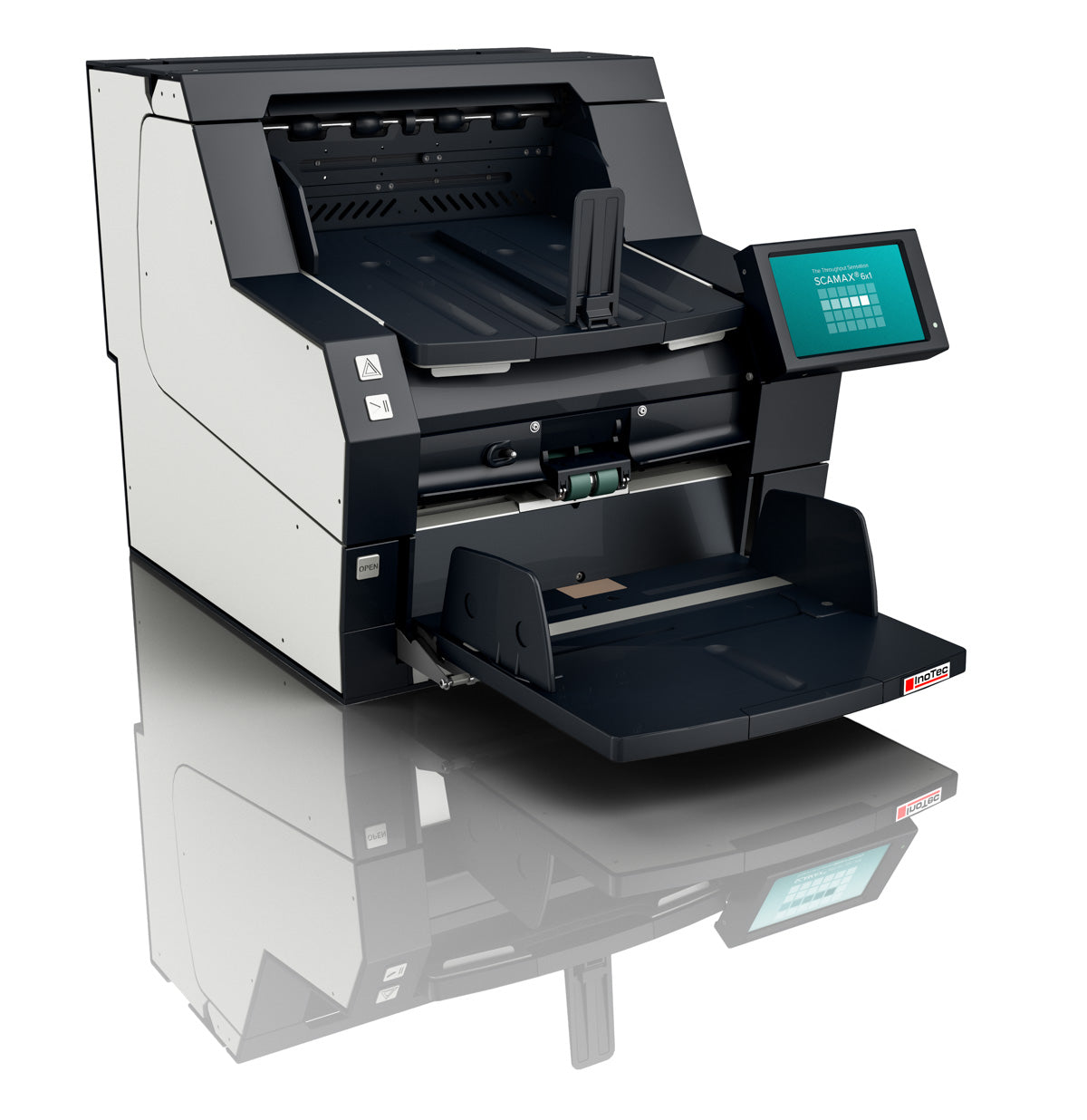

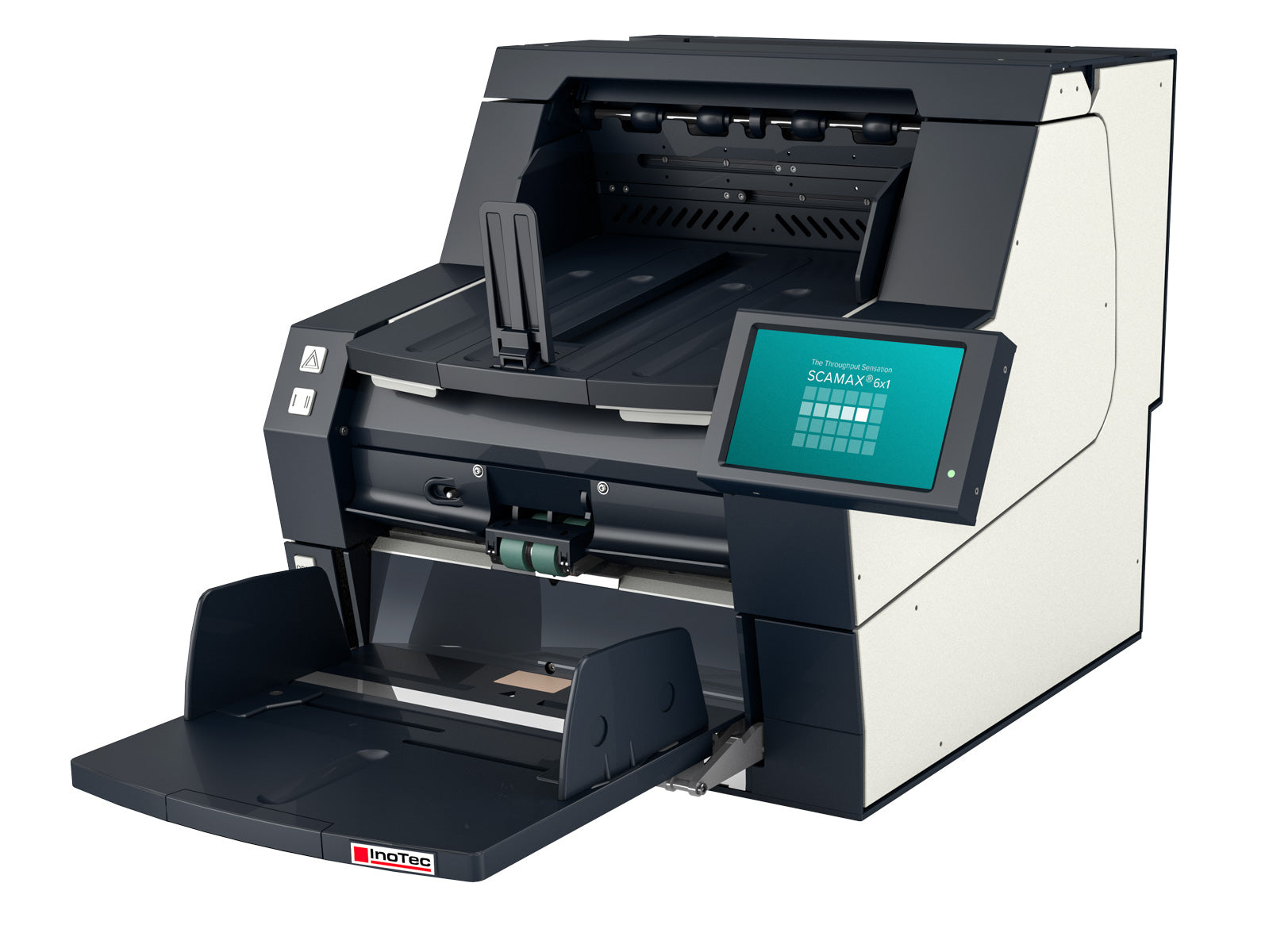

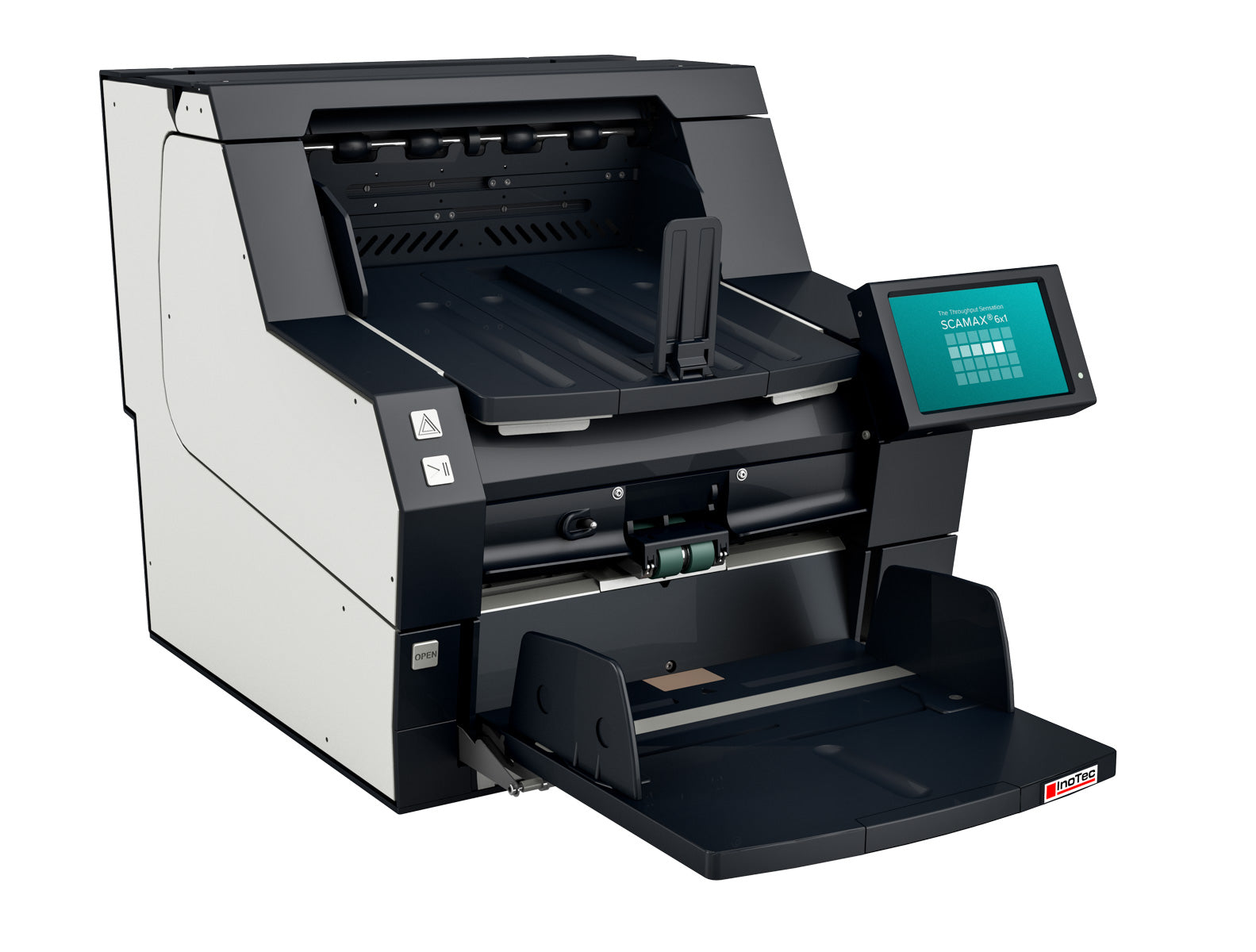

InoTec SCAMAX 6x1 Model 611 Production Scanner

InoTec SCAMAX® 6x1 Model 611 — High-Throughput Production Document Scanner

The SCAMAX® 6x1 Model 611 steps up the throughput to 150 sheets/minute (A4 landscape, 200/300 dpi, bitonal and colour) — delivering world-class desktop production scanning for organisations with demanding daily volumes. Compact enough for a desk, powerful enough for a full shift. Made in Germany by InoTec (DATAWIN GmbH).

From mailroom scanning and archive digitization through to commercial scanning bureaus, the SCAMAX® 6x1 handles large-scale, consecutive projects without stops or errors.

Key Features

Belt transport system — gentle on paper, wear-free, maintenance-free, cleaning-free
NoSCRATCH glass guide with 36-month warranty
7" MultiTouch Communication Panel with integrated user management & traffic light logic
Variable input pressure — adapts to document quality and size
Active sorting switch — sort separator sheets at full scan speed
Five ultrasonic double-feed sensors with automatic staple/metal detection
Imprinter HD (optional) — 300/600/1200 dpi, up to 4 lines, barcode printing
SlowDown Mode (optional) — 20, 40, 70 ppm for sensitive documents
Straight paper throughput with rear output tray
Transport and scan width up to 317.5 mm
Performance upgradeable on-site — scale up to 210 spm as volumes grow
FADGI *** & ISO 19264-1 Level B compliant
Kofax VRS / Express certified, TR-RESISCAN ready

Technical Specifications

Scanning Method	CCD Line Camera
Illumination	LED (diffuse)
Optical Resolution	600 dpi
Output Resolutions	75, 100, 150, 200, 240, 300, 400, 600 dpi (dual/multi resolution supported)
Throughput	150 sheets/min (A4 landscape, 200 & 300 dpi, bitonal & colour)
Daily Volume	Unlimited
Colour Image	24-bit True Color (16.8 million colours)
Grayscale Image	8-bit, 256 gray levels
Bitonal Image	1-bit
Output Formats	CCITT Group IV, JPEG, PDF/R (Raster), TIFF, uncompressed
ADF Stack Height	75 mm (~750 sheets at 80 g/m²)
Document Width	56 mm – 317.5 mm
Document Length	60 mm – 1,950 mm (LongDoc up to ~15.5 m)
Paper Weight	30 – 800 g/m²
Paper Formats	A3, A4, A5, A6, A7, B4, B5, B6, B7, Ledger, Legal, Letter, Executive, Invoice, custom
Double Feed Detection	5 ultrasonic sensors + automatic staple/metal recognition
Interface	USB 3.0 (Type B) + 3× USB 2.1 (Type A)
Supported OS	Windows 10/11 (64-bit), Server 2016/2019/2022/2025
Driver	TWAIN, ISIS®, WIA
Power Consumption	Max. 400 W; Standby <0.5 W
Dimensions (W×D×H)	510/611 mm × 512–862–1,250 mm × 521 mm
Weight	64.8 kg (without options)
Noise	46 dB(A) standby; 55–59 dB(A) operating
Standards	FADGI ***, ISO 19264-1 Level B, Kofax VRS/Express, TR-RESISCAN
Warranty	12 months (device), 36 months (NoSCRATCH glass guide)
Country of Origin	Germany
