InoTec SCAMAX 8x1 Model 801 Production Scanner

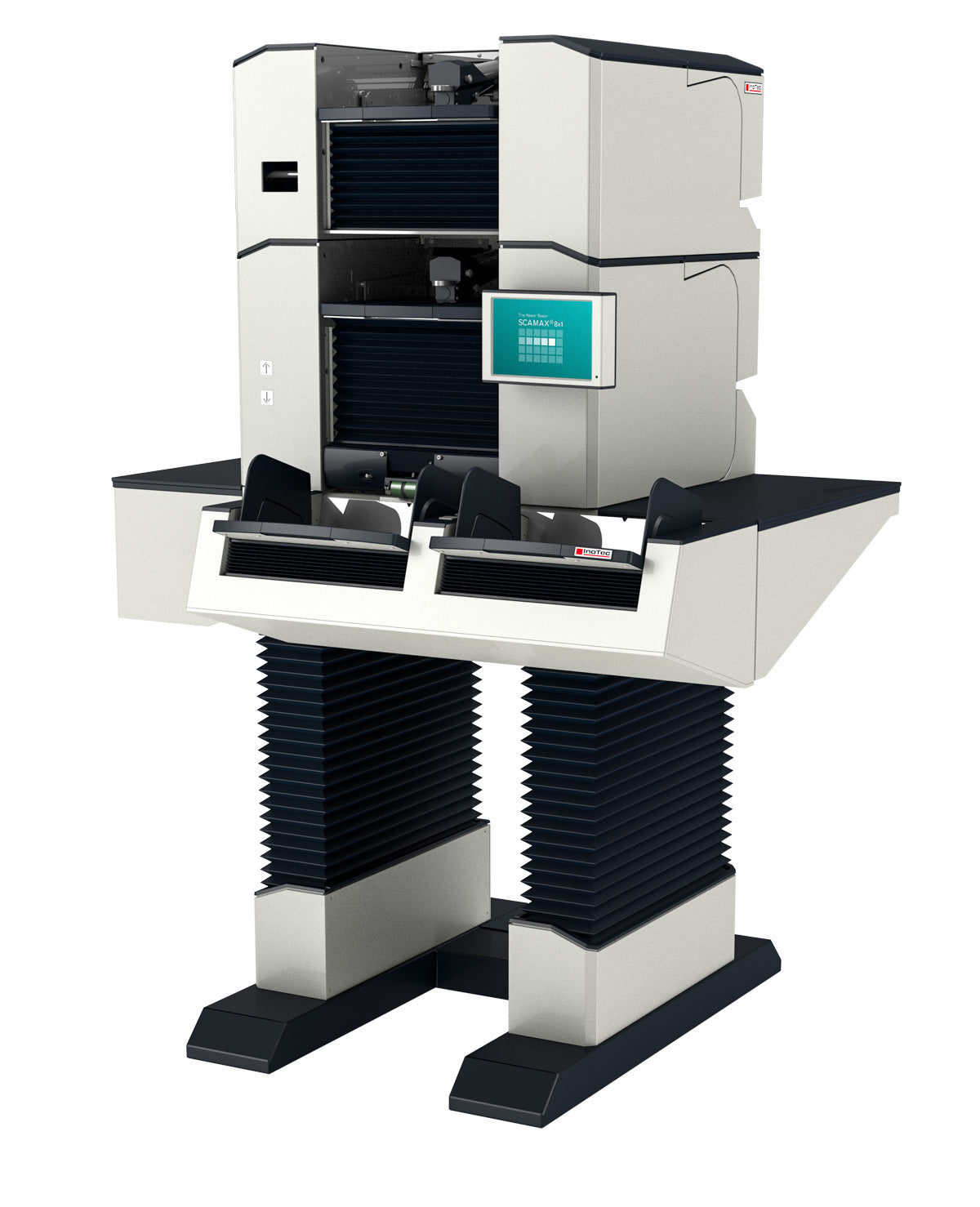

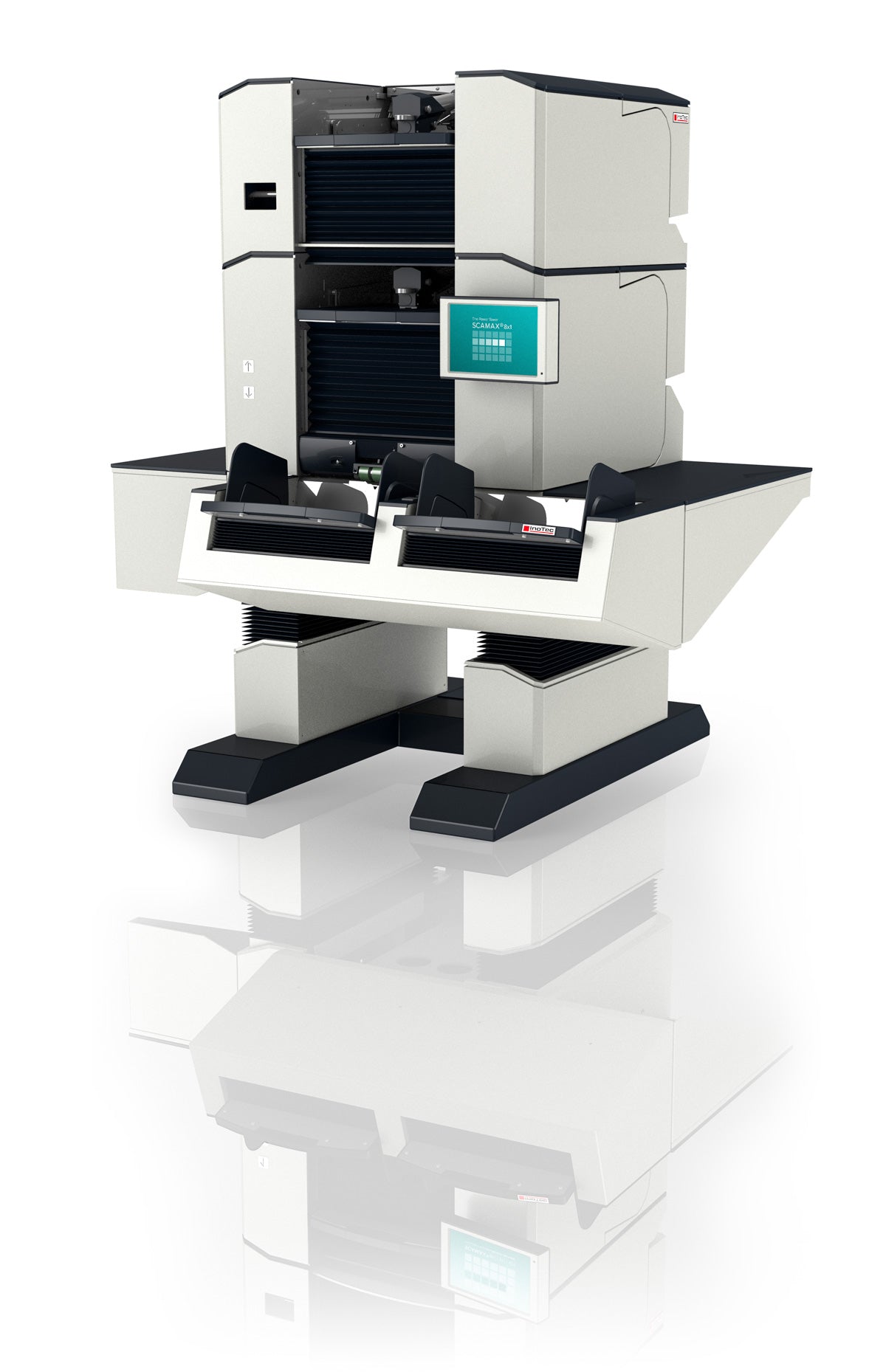

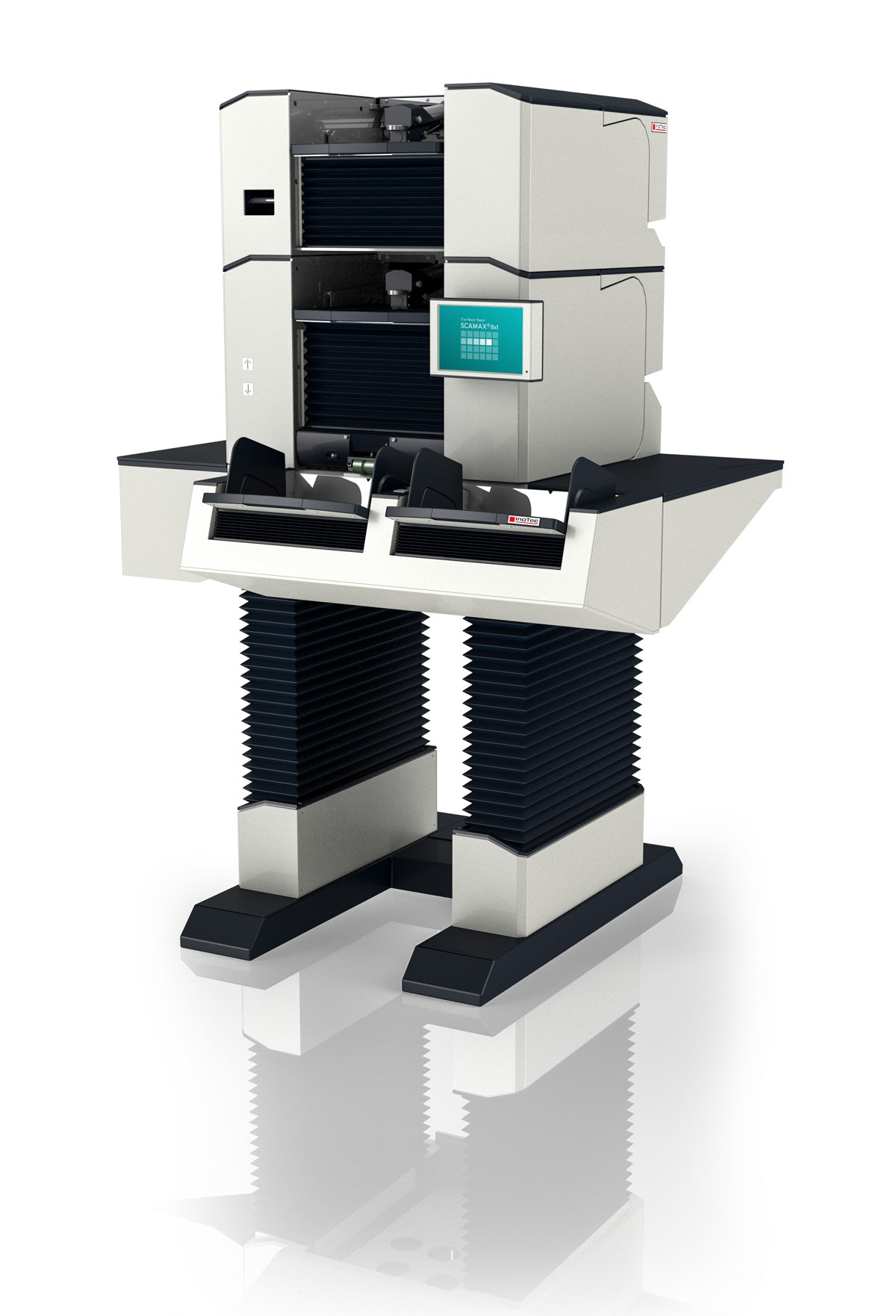

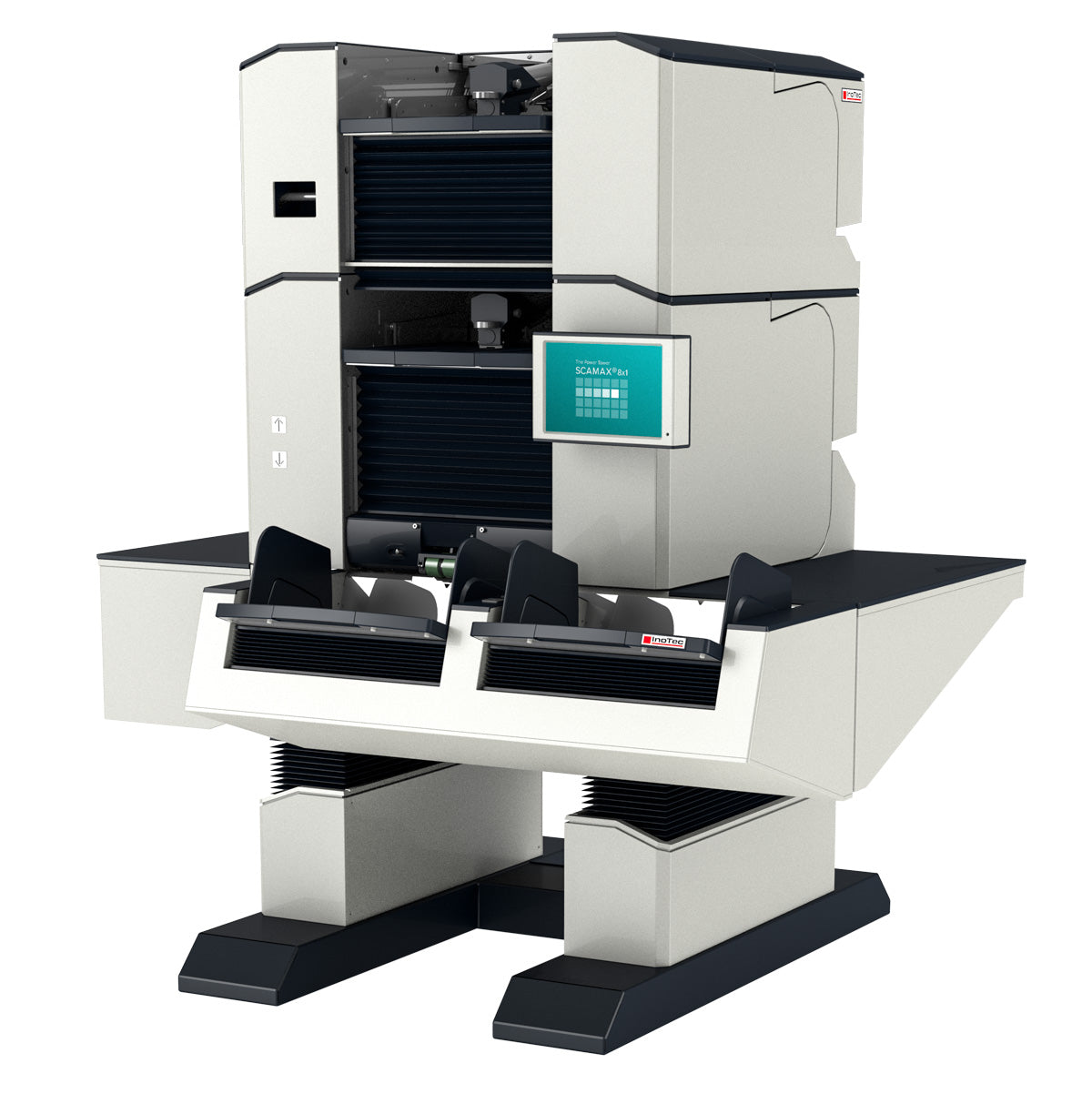

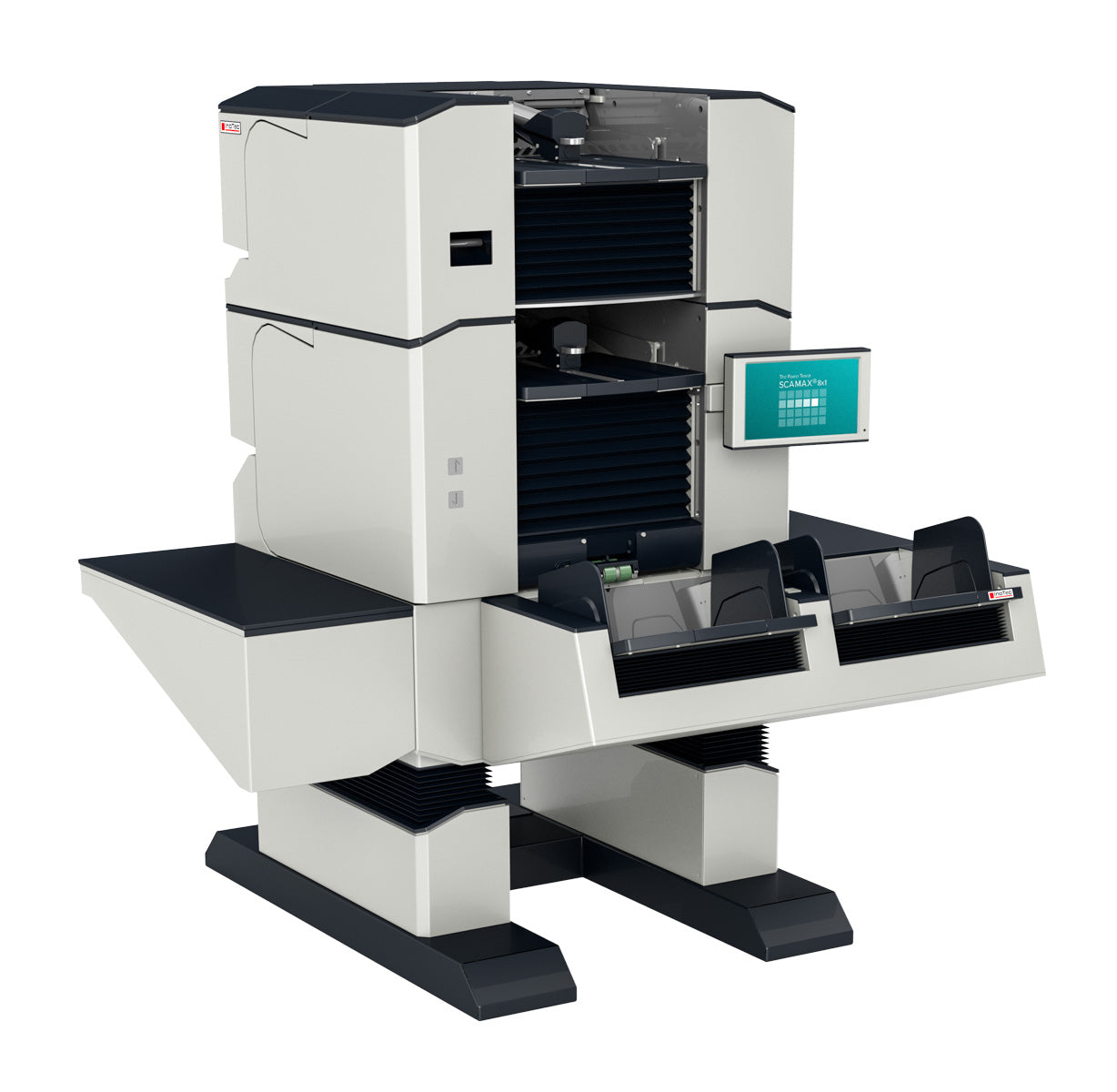

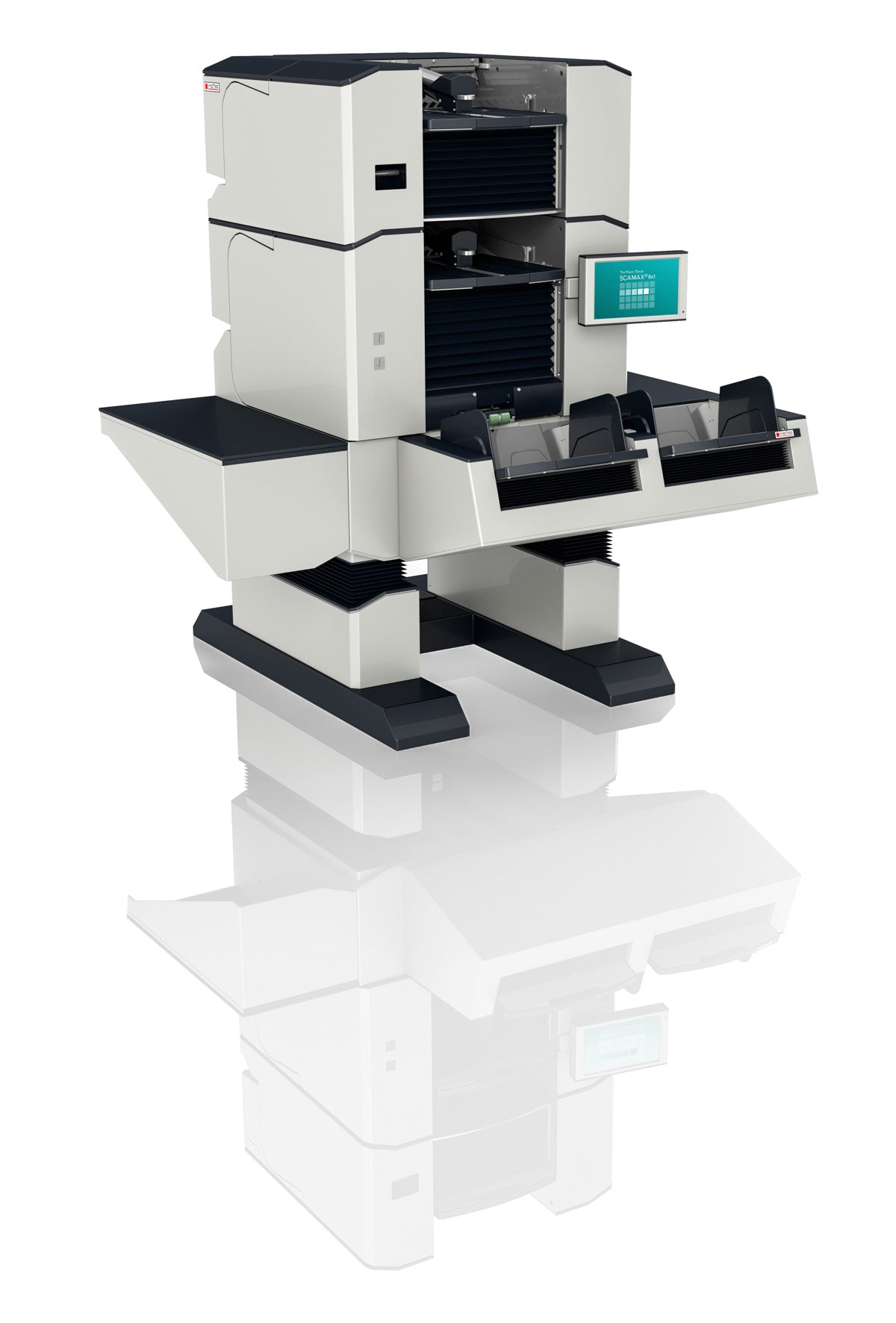

InoTec SCAMAX® 8x1 Model 801 — Power Tower Production Document Scanner

The SCAMAX® 8x1 is InoTec’s throughput heavyweight — a floor-standing production scanner with a footprint of just one square metre, yet capable of replacing entire open-track scanner installations. The Model 801 delivers 160 sheets/minute (A4 landscape, 200/300 dpi, bitonal and colour) with continuous 24/7 durability, purpose-built for five- to six-digit daily document volumes.

Height-adjustable for ergonomic operation, built in Germany to the highest precision standards, and upgradeable on-site as volumes grow — the SCAMAX® 8x1 is the smart, sustainable, space-saving alternative to traditional open-track systems.

Key Features

9" MultiTouch Communication Panel with integrated user management & traffic light logic
Motor-driven height adjustment — 640 mm to 1,100 mm for ergonomic operation
NoSCRATCH glass guide with 36-month warranty
HighSpeed Stacker Arm for high-speed scanning output
Dual Input Hopper (optional) for continuous uninterrupted processing
2nd Output Hopper (optional) for active sorting at full speed
Straight paper throughput with rear output for inflexible documents
Imprinter SD (dual inkjet, standard) + Imprinter HD (optional) — 300/600/1200 dpi, barcode printing
Five-digit document length support up to 6,920 mm (LongDoc ~15.5 m)
Performance upgradeable on-site — scale from 160 up to 300 spm
TR-RESISCAN ready

Technical Specifications

Scanning Method	CCD Line Camera
Illumination	LED (diffuse)
Optical Resolution	600 dpi
Output Resolutions	75, 100, 150, 200, 240, 300, 400, 600 dpi (dual/multi resolution supported)
Throughput	160 sheets/min (A4 landscape, 200 & 300 dpi, bitonal & colour)
Daily Volume	Unlimited
Colour Image	24-bit True Color (16.8 million colours)
Grayscale Image	8-bit, 256 gray levels
Bitonal Image	1-bit
Output Formats	CCITT Group IV, JPEG, PDF/R (Raster), TIFF, uncompressed
ADF Stack Height	100 mm (~1,000 sheets at 80 g/m²)
Document Width	56 mm – 317.5 mm
Document Length	60 mm – 6,920 mm (LongDoc up to ~15.5 m)
Paper Weight	30 – 800 g/m²
Max. Admission Height	2.0 mm (up to 5 mm with optional Straight Through Paper Path Elevation)
Paper Formats	A3, A4, A5, A6, A7, B4, B5, B6, B7, Ledger, Legal, Letter, Executive, Invoice, custom
Working Height	Motor-driven, 640 – 1,100 mm
Interface	USB 3.0 (Type B) + 3× USB 2.1 (Type A)
Supported OS	Windows 7/8 (32/64-bit), Windows 10/11 (64-bit), Server 2016/2019/2022/2025
Driver	TWAIN, ISIS®, WIA
Power Consumption	Max. 800 W; Standby <0.5 W
Dimensions (W×D×H)	1,280/720 mm × 1,330/1,150 mm × 1,070–1,530 mm (height adjustable)
Weight	From 190 kg (model dependent)
Noise	Max. 45 dB(A) standby; Max. 74 dB(A) operating
Certification	TR-RESISCAN ready
Warranty	12 months (device), 36 months (NoSCRATCH glass guide)
Country of Origin	Germany
